Webhooks

Webhooks allow your application to receive real-time notifications when specific events occur in your Wuilt store. Instead of repeatedly polling our API for changes, webhooks push event data to your application as soon as something happens.

Need Help with Webhooks?

Use our AI Assistant powered by Context7 to get instant answers and code examples for webhook setup and troubleshooting. Chat with the docs →

How to Set Up Webhooks

1. Create a Webhook Endpoint

First, create an endpoint in your application that can receive HTTP POST requests from Wuilt:

Example Nodejs Webhook implementation:

const express = require("express");
const app = express();

// Middleware to parse JSON payloads
app.use(express.json());

// Webhook endpoint
app.post("/webhooks/wuilt", (req, res) => {
  console.log("Received webhook:", {
    body: JSON.stringify(req.body, null, 2),
    headers: req.headers,
  });
  // Always respond with 200 OK
  res.status(200).send("OK");
  if (req.body.test) {
    return console.log("Received test webhook:", { body: req.body });
  }
  const { event, payload, metadata } = req.body;

  // Process the webhook based on event type
  switch (event) {
    case "ORDER_PLACED":
      handleOrderPlaced(payload);
      break;
    case "PRODUCT_UPDATED":
      handleProductUpdated(payload);
      break;
    case "SHIPMENT_UPDATED":
      handleShipmentUpdated(payload);
      break;
    case "CART_ITEM_ADDED":
      handleCartItemAdded(payload);
      break;
    case "CHECKOUT_INITIATED":
      handleCheckoutInitiated(payload);
      break;
    case "CART_ABANDONED":
      handleCartAbandoned(payload);
      break;
    // Handle other events...
    default:
      console.log("Unknown event type:", event);
  }
});

app.listen(3000, () => {
  console.log("Webhook server listening on port 3000");
});

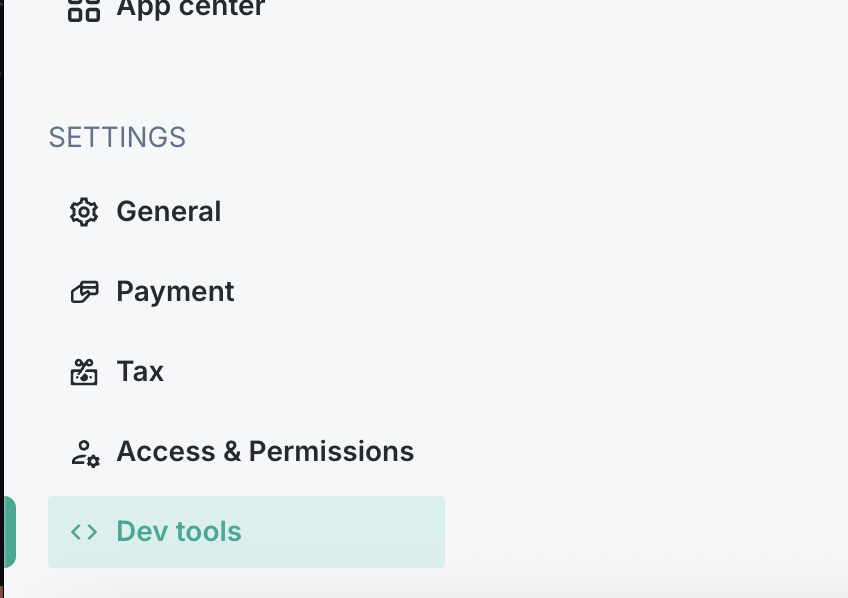

2. Access the Dev tools Section

From the left sidebar menu, scroll down to SETTINGS
Click on Dev Tools at the bottom of the settings menu

Access & Permissions Menu

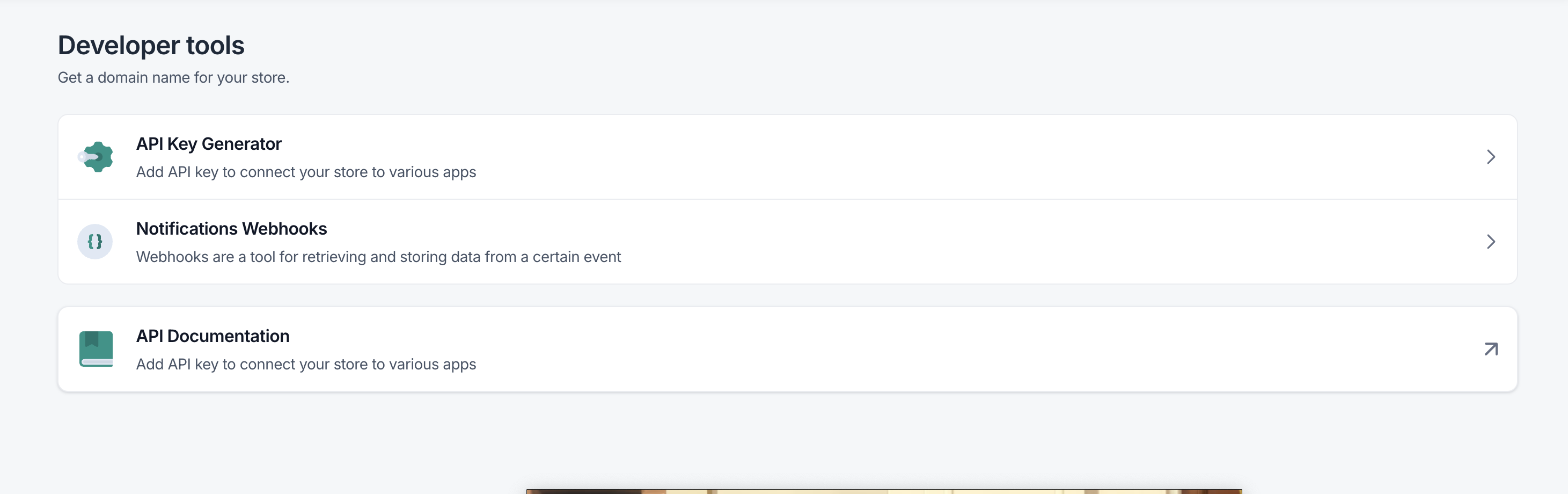

3. Notifications Webhooks

Click on Notifications Webhooks card.

Access & Permissions Menu

4. Register Your Webhook in the Wuilt Dashboard

To set up webhooks, navigate to your Wuilt dashboard and follow these steps:

Access Webhook Settings: Go to your store settings and find the "Webhooks" section.

Webhook Settings

Configure Your Webhook: Enter your webhook URL and select the events you want to receive notifications for.

Webhook Configuration

Available Events:

Order Events:

ORDER_PLACED - When a new order is created
ORDER_UPDATED - When an order is modified
ORDER_CANCELED - When an order is canceled

Product Events:

PRODUCT_CREATED - When a new product is added
PRODUCT_UPDATED - When a product is modified
PRODUCT_DELETED - When a product is removed

Customer Events:

CUSTOMER_CREATED - When a new customer registers
CUSTOMER_UPDATED - When customer information is updated

Shipment Events:

SHIPMENT_UPDATED - When a shipment status changes (pickup, delivery attempts, delivery, returns)

Cart & Checkout Events:

CART_ITEM_ADDED - When a customer adds an item to their cart
CHECKOUT_INITIATED - When a customer begins the checkout process
CART_ABANDONED - When a cart with contact information has been inactive for over 60 minutes

Event Payloads

All webhook payloads follow the same structure defined by the WebhookPayload interface:

interface WebhookPayload<T = any> {
  event: string; // Event type (e.g., 'ORDER_PLACED')
  payload: T; // Event data, structure varies by event type
  metadata: {
    apiVersion: string; // API version used
    timestamp: string; // ISO timestamp of when the event occurred
    storeId: string; // ID of the store that triggered the event
  };
}

interface OrderStatusEvent {
  orderId: string;
  airwayBillId: string;
  companyName: string;
  cost: number;
  location: ShippingLocation;
  storeId: string;
  trackingNumber: string;
  orderSerial: number;
}

interface ShippingLocation {
  country: string;
  governorate: string;
  city: string;
  fullAddress?: string;
}

Order Events

ORDER_PLACED

Triggered when a new order is successfully placed.

Payload Type: { order: OrderDocument }

View ORDER_PLACED payload example

{
  "event": "ORDER_PLACED",
  "payload": {
    "order": {
      "_id": "cmdlpac7n000201pm3dgifkqu",
      "storeId": "cm4qwjv0e004s01k77o2f1f5e",
      "cartId": "d3f61199-b262-4deb-a42d-31a5b93952b0",
      "status": "SUCCESSFUL",
      "errors": [],
      "subtotal": {
        "amount": 3000,
        "currencyCode": "EGP"
      },
      "totalPrice": {
        "amount": 3200,
        "currencyCode": "EGP"
      },
      "shippingRateCost": {
        "amount": 75,
        "currencyCode": "EGP"
      },
      "fulfillmentStatus": "UNFULFILLED",
      "notes": "",
      "shippingRateId": "clzvqvezy0004017i4vwe4667",
      "shippingRateName": "Bosta",
      "promoCodeSnapshot": null,
      "isArchived": false,
      "isCanceled": false,
      "isViewed": false,
      "customerId": "cm4qwyzfv000g018y6mv39bnd",
      "itemsCount": 1,
      "fulfilledItems": 0,
      "shippingAddress": {
        "addressLine1": "11th Districtttt",
        "addressLine2": "12th apartment",
        "phone": "+201111111111",
        "secondPhone": null,
        "postalCode": "001",
        "notes": "",
        "countryCode2": "EG",
        "countryName": "Egypt",
        "stateName": "Alexandria",
        "cityName": "Borg Al Arab City",
        "area": {
          "countryId": "clzy5vtku0000kn9kagau94vi",
          "stateId": "clzy5vtl6004rkn9k8dx8gmml",
          "cityId": "clzy5vtl7004ukn9k1my75jhi"
        },
        "areaSnapshot": {
          "countryName": "Egypt",
          "stateName": "Alexandria",
          "cityName": "Borg Al Arab City"
        }
      },
      "billingAddress": {
        "addressLine1": "11th Districtttt",
        "addressLine2": "12th apartment",
        "phone": "+201111111111",
        "secondPhone": null,
        "postalCode": "001",
        "notes": "",
        "countryCode2": "EG",
        "countryName": "Egypt",
        "stateName": "Alexandria",
        "cityName": "Borg Al Arab City",
        "area": {
          "countryId": "clzy5vtku0000kn9kagau94vi",
          "stateId": "clzy5vtl6004rkn9k8dx8gmml",
          "cityId": "clzy5vtl7004ukn9k1my75jhi"
        },
        "areaSnapshot": {
          "countryName": "Egypt",
          "stateName": "Alexandria",
          "cityName": "Borg Al Arab City"
        }
      },
      "promoCode": null,
      "customer": {
        "name": "John Doe",
        "email": "john.doe@gmail.com",
        "phone": "+201111111111",
        "isSubscribedToNewsLetter": true
      },
      "storeData": {
        "name": "John Doe",
        "logo": null,
        "email": "john.doe@gmail.com",
        "phone": "115050"
      },
      "items": [
        {
          "_id": "08672157-9dc9-443d-a74c-cb55312162d4",
          "productId": "cmdeh9e2h00d801xoco4ngtt5",
          "productSnapshot": {
            "id": "cmdeh9e2h00d801xoco4ngtt5",
            "type": "SIMPLE",
            "media": ["cmdeh6b4c004201ceeufm8fqu", "cmdeh6b4c004301ceefuk40e4"],
            "title": "Product Title",
            "handle": "product-handle",
            "locale": "en",
            "source": "MANUAL",
            "status": "ACTIVE",
            "options": "",
            "storeId": "cm4qwjv0e004s01k77o2f1f5e",
            "taxable": false,
            "isVisible": true,
            "productTax": 0,
            "translations": [],
            "collectionIds": [],
            "descriptionHtml": "",
            "integrationProvider": {
              "icon": {
                "src": "",
                "altText": ""
              },
              "name": "MANUAL",
              "provider": "MANUAL",
              "websiteLink": ""
            }
          },
          "title": "Product Title",
          "fulfilledItems": 0,
          "subtotal": {
            "amount": 3000,
            "currencyCode": "EGP"
          },
          "quantity": 1,
          "discount": null,
          "discounts": [],
          "type": "SIMPLE",
          "variantId": "cmdeh9e2h00d901xo8oqu5a2x",
          "variantSnapshot": {
            "id": "cmdeh9e2h00d901xo8oqu5a2x",
            "sku": "product-sku",
            "type": "variant",
            "price": {
              "amount": 3000,
              "currencyCode": "EGP"
            },
            "storeId": "cm4qwjv0e004s01k77o2f1f5e",
            "quantity": 10,
            "productId": "cmdeh9e2h00d801xoco4ngtt5",
            "externalId": "",
            "trackQuantity": true,
            "compareAtPrice": {
              "amount": 3150,
              "currencyCode": "EGP"
            },
            "selectedOptions": [],
            "selectedOptionsIds": [],
            "selectedOptionValuesIds": []
          },
          "price": {
            "amount": 3000,
            "currencyCode": "EGP"
          },
          "options": [],
          "sourceType": "MANUAL",
          "productTax": null,
          "taxable": false,
          "quantityChanged": false,
          "categories": [],
          "manualDiscounts": []
        }
      ],
      "externalActionMessage": [],
      "paymentMethod": "CASH_ON_DELIVERY",
      "paymentStatus": "PENDING",
      "paidAmount": {
        "amount": 0,
        "currencyCode": "EGP"
      },
      "shippingStatus": "PENDING",
      "taxSnapshot": null,
      "receipt": {
        "subtotal": {
          "amount": 3000,
          "currencyCode": "EGP"
        },
        "discount": {
          "amount": 0,
          "currencyCode": "EGP"
        },
        "tax": {
          "amount": 0,
          "currencyCode": "EGP"
        },
        "shipping": {
          "amount": 200,
          "currencyCode": "EGP"
        },
        "total": {
          "amount": 3200,
          "currencyCode": "EGP"
        },
        "automaticDiscount": {
          "amount": 0,
          "currencyCode": "EGP"
        }
      },
      "discounts": [],
      "locale": "en",
      "refCode": null,
      "paymentIntentId": "cmdlpac07000d016o65sn713a",
      "wuiltShipmentProvider": "Bosta",
      "packagingDetails": {
        "extraWeight": 0,
        "extraVolumetricWeight": 0,
        "weight": 0,
        "volumetricWeight": 0.0003333333333333333,
        "shippingCostDetails": {
          "baseCost": 75,
          "returnCost": 88,
          "baseWeightLimit": 20,
          "extraWeightCost": 0,
          "extraWeightStep": 0,
          "returnToOriginCost": 68
        },
        "flyer": "X_LARGE"
      },
      "tags": [],
      "openPackageOption": null,
      "manualDiscounts": [],
      "orderSerial": "418",
      "createdAt": "2025-07-27T13:14:03.056Z",
      "updatedAt": "2025-07-27T13:14:03.056Z"
    }
  },
  "metadata": {
    "apiVersion": "2024-01",
    "timestamp": "2024-01-15T10:30:00Z",
    "storeId": "store_abc123def456"
  }
}

ORDER_UPDATED

Triggered when an existing order is modified (status change, items updated, etc.).

Payload Type: { events: string[], order: OrderDocument }

View ORDER_UPDATED payload example

{
  "event": "ORDER_UPDATED",
  "payload": {
    "events": ["status_changed", "fulfillment_updated"],
    "order": {
      "_id": "cmdlpac7n000201pm3dgifkqu",
      "storeId": "cm4qwjv0e004s01k77o2f1f5e",
      "cartId": "d3f61199-b262-4deb-a42d-31a5b93952b0",
      "status": "SUCCESSFUL",
      "errors": [],
      "subtotal": {
        "amount": 3000,
        "currencyCode": "EGP"
      },
      "totalPrice": {
        "amount": 3200,
        "currencyCode": "EGP"
      },
      "shippingRateCost": {
        "amount": 75,
        "currencyCode": "EGP"
      },
      "fulfillmentStatus": "UNFULFILLED",
      "notes": "",
      "shippingRateId": "clzvqvezy0004017i4vwe4667",
      "shippingRateName": "Bosta",
      "promoCodeSnapshot": null,
      "isArchived": false,
      "isCanceled": false,
      "isViewed": false,
      "customerId": "cm4qwyzfv000g018y6mv39bnd",
      "itemsCount": 1,
      "fulfilledItems": 0,
      "shippingAddress": {
        "addressLine1": "11th Districtttt",
        "addressLine2": "12th apartment",
        "phone": "+201111111111",
        "secondPhone": null,
        "postalCode": "001",
        "notes": "",
        "countryCode2": "EG",
        "countryName": "Egypt",
        "stateName": "Alexandria",
        "cityName": "Borg Al Arab City",
        "area": {
          "countryId": "clzy5vtku0000kn9kagau94vi",
          "stateId": "clzy5vtl6004rkn9k8dx8gmml",
          "cityId": "clzy5vtl7004ukn9k1my75jhi"
        },
        "areaSnapshot": {
          "countryName": "Egypt",
          "stateName": "Alexandria",
          "cityName": "Borg Al Arab City"
        }
      },
      "billingAddress": {
        "addressLine1": "11th Districtttt",
        "addressLine2": "12th apartment",
        "phone": "+201111111111",
        "secondPhone": null,
        "postalCode": "001",
        "notes": "",
        "countryCode2": "EG",
        "countryName": "Egypt",
        "stateName": "Alexandria",
        "cityName": "Borg Al Arab City",
        "area": {
          "countryId": "clzy5vtku0000kn9kagau94vi",
          "stateId": "clzy5vtl6004rkn9k8dx8gmml",
          "cityId": "clzy5vtl7004ukn9k1my75jhi"
        },
        "areaSnapshot": {
          "countryName": "Egypt",
          "stateName": "Alexandria",
          "cityName": "Borg Al Arab City"
        }
      },
      "promoCode": null,
      "customer": {
        "name": "John Doe",
        "email": "john.doe@gmail.com",
        "phone": "+201111111111",
        "isSubscribedToNewsLetter": true
      },
      "storeData": {
        "name": "John Doe",
        "logo": null,
        "email": "john.doe@gmail.com",
        "phone": "115050"
      },
      "items": [
        {
          "_id": "08672157-9dc9-443d-a74c-cb55312162d4",
          "productId": "cmdeh9e2h00d801xoco4ngtt5",
          "productSnapshot": {
            "id": "cmdeh9e2h00d801xoco4ngtt5",
            "type": "SIMPLE",
            "media": ["cmdeh6b4c004201ceeufm8fqu", "cmdeh6b4c004301ceefuk40e4"],
            "title": "Product Title",
            "handle": "product-handle",
            "locale": "en",
            "source": "MANUAL",
            "status": "ACTIVE",
            "options": "",
            "storeId": "cm4qwjv0e004s01k77o2f1f5e",
            "taxable": false,
            "isVisible": true,
            "productTax": 0,
            "translations": [],
            "collectionIds": [],
            "descriptionHtml": "",
            "integrationProvider": {
              "icon": {
                "src": "",
                "altText": ""
              },
              "name": "MANUAL",
              "provider": "MANUAL",
              "websiteLink": ""
            }
          },
          "title": "Product Title",
          "fulfilledItems": 0,
          "subtotal": {
            "amount": 3000,
            "currencyCode": "EGP"
          },
          "quantity": 1,
          "discount": null,
          "discounts": [],
          "type": "SIMPLE",
          "variantId": "cmdeh9e2h00d901xo8oqu5a2x",
          "variantSnapshot": {
            "id": "cmdeh9e2h00d901xo8oqu5a2x",
            "sku": "product-sku",
            "type": "variant",
            "price": {
              "amount": 3000,
              "currencyCode": "EGP"
            },
            "storeId": "cm4qwjv0e004s01k77o2f1f5e",
            "quantity": 10,
            "productId": "cmdeh9e2h00d801xoco4ngtt5",
            "externalId": "",
            "trackQuantity": true,
            "compareAtPrice": {
              "amount": 3150,
              "currencyCode": "EGP"
            },
            "selectedOptions": [],
            "selectedOptionsIds": [],
            "selectedOptionValuesIds": []
          },
          "price": {
            "amount": 3000,
            "currencyCode": "EGP"
          },
          "options": [],
          "sourceType": "MANUAL",
          "productTax": null,
          "taxable": false,
          "quantityChanged": false,
          "categories": [],
          "manualDiscounts": []
        }
      ],
      "externalActionMessage": [],
      "paymentMethod": "CASH_ON_DELIVERY",
      "paymentStatus": "PENDING",
      "paidAmount": {
        "amount": 0,
        "currencyCode": "EGP"
      },
      "shippingStatus": "PENDING",
      "taxSnapshot": null,
      "receipt": {
        "subtotal": {
          "amount": 3000,
          "currencyCode": "EGP"
        },
        "discount": {
          "amount": 0,
          "currencyCode": "EGP"
        },
        "tax": {
          "amount": 0,
          "currencyCode": "EGP"
        },
        "shipping": {
          "amount": 200,
          "currencyCode": "EGP"
        },
        "total": {
          "amount": 3200,
          "currencyCode": "EGP"
        },
        "automaticDiscount": {
          "amount": 0,
          "currencyCode": "EGP"
        }
      },
      "discounts": [],
      "locale": "en",
      "refCode": null,
      "paymentIntentId": "cmdlpac07000d016o65sn713a",
      "wuiltShipmentProvider": "Bosta",
      "packagingDetails": {
        "extraWeight": 0,
        "extraVolumetricWeight": 0,
        "weight": 0,
        "volumetricWeight": 0.0003333333333333333,
        "shippingCostDetails": {
          "baseCost": 75,
          "returnCost": 88,
          "baseWeightLimit": 20,
          "extraWeightCost": 0,
          "extraWeightStep": 0,
          "returnToOriginCost": 68
        },
        "flyer": "X_LARGE"
      },
      "tags": [],
      "openPackageOption": null,
      "manualDiscounts": [],
      "orderSerial": "418",
      "createdAt": "2025-07-27T13:14:03.056Z",
      "updatedAt": "2025-07-27T13:14:03.056Z"
    }
  },
  "metadata": {
    "apiVersion": "2024-01",
    "timestamp": "2024-01-16T14:22:00Z",
    "storeId": "store_abc123def456"
  }
}

ORDER_CANCELED

Triggered when an order is canceled.

Payload Type: OrderDocument

View ORDER_CANCELED payload example

{
  "event": "ORDER_CANCELED",
  "payload": {
    "order": {
      "_id": "cmdlpac7n000201pm3dgifkqu",
      "storeId": "cm4qwjv0e004s01k77o2f1f5e",
      "cartId": "d3f61199-b262-4deb-a42d-31a5b93952b0",
      "status": "SUCCESSFUL",
      "errors": [],
      "subtotal": {
        "amount": 3000,
        "currencyCode": "EGP"
      },
      "totalPrice": {
        "amount": 3200,
        "currencyCode": "EGP"
      },
      "shippingRateCost": {
        "amount": 75,
        "currencyCode": "EGP"
      },
      "fulfillmentStatus": "UNFULFILLED",
      "notes": "",
      "shippingRateId": "clzvqvezy0004017i4vwe4667",
      "shippingRateName": "Bosta",
      "promoCodeSnapshot": null,
      "isArchived": false,
      "isCanceled": false,
      "isViewed": false,
      "customerId": "cm4qwyzfv000g018y6mv39bnd",
      "itemsCount": 1,
      "fulfilledItems": 0,
      "shippingAddress": {
        "addressLine1": "11th Districtttt",
        "addressLine2": "12th apartment",
        "phone": "+201111111111",
        "secondPhone": null,
        "postalCode": "001",
        "notes": "",
        "countryCode2": "EG",
        "countryName": "Egypt",
        "stateName": "Alexandria",
        "cityName": "Borg Al Arab City",
        "area": {
          "countryId": "clzy5vtku0000kn9kagau94vi",
          "stateId": "clzy5vtl6004rkn9k8dx8gmml",
          "cityId": "clzy5vtl7004ukn9k1my75jhi"
        },
        "areaSnapshot": {
          "countryName": "Egypt",
          "stateName": "Alexandria",
          "cityName": "Borg Al Arab City"
        }
      },
      "billingAddress": {
        "addressLine1": "11th Districtttt",
        "addressLine2": "12th apartment",
        "phone": "+201111111111",
        "secondPhone": null,
        "postalCode": "001",
        "notes": "",
        "countryCode2": "EG",
        "countryName": "Egypt",
        "stateName": "Alexandria",
        "cityName": "Borg Al Arab City",
        "area": {
          "countryId": "clzy5vtku0000kn9kagau94vi",
          "stateId": "clzy5vtl6004rkn9k8dx8gmml",
          "cityId": "clzy5vtl7004ukn9k1my75jhi"
        },
        "areaSnapshot": {
          "countryName": "Egypt",
          "stateName": "Alexandria",
          "cityName": "Borg Al Arab City"
        }
      },
      "promoCode": null,
      "customer": {
        "name": "John Doe",
        "email": "john.doe@gmail.com",
        "phone": "+201111111111",
        "isSubscribedToNewsLetter": true
      },
      "storeData": {
        "name": "John Doe",
        "logo": null,
        "email": "john.doe@gmail.com",
        "phone": "115050"
      },
      "items": [
        {
          "_id": "08672157-9dc9-443d-a74c-cb55312162d4",
          "productId": "cmdeh9e2h00d801xoco4ngtt5",
          "productSnapshot": {
            "id": "cmdeh9e2h00d801xoco4ngtt5",
            "type": "SIMPLE",
            "media": ["cmdeh6b4c004201ceeufm8fqu", "cmdeh6b4c004301ceefuk40e4"],
            "title": "Product Title",
            "handle": "product-handle",
            "locale": "en",
            "source": "MANUAL",
            "status": "ACTIVE",
            "options": "",
            "storeId": "cm4qwsv0e004s01k77o2f1f5e",
            "taxable": false,
            "isVisible": true,
            "productTax": 0,
            "translations": [],
            "collectionIds": [],
            "descriptionHtml": "",
            "integrationProvider": {
              "icon": {
                "src": "",
                "altText": ""
              },
              "name": "MANUAL",
              "provider": "MANUAL",
              "websiteLink": ""
            }
          },
          "title": "Product Title",
          "fulfilledItems": 0,
          "subtotal": {
            "amount": 3000,
            "currencyCode": "EGP"
          },
          "quantity": 1,
          "discount": null,
          "discounts": [],
          "type": "SIMPLE",
          "variantId": "cmdeh9e2h00d901xo8oqu5a2x",
          "variantSnapshot": {
            "id": "cmdeh9e2h00d901xo8oqu5a2x",
            "sku": "product-sku",
            "type": "variant",
            "price": {
              "amount": 3000,
              "currencyCode": "EGP"
            },
            "storeId": "cm4qwjv0e004s01k77o2f1f5e",
            "quantity": 10,
            "productId": "cmdeh9e2h00d801xoco4ngtt5",
            "externalId": "",
            "trackQuantity": true,
            "compareAtPrice": {
              "amount": 3150,
              "currencyCode": "EGP"
            },
            "selectedOptions": [],
            "selectedOptionsIds": [],
            "selectedOptionValuesIds": []
          },
          "price": {
            "amount": 3000,
            "currencyCode": "EGP"
          },
          "options": [],
          "sourceType": "MANUAL",
          "productTax": null,
          "taxable": false,
          "quantityChanged": false,
          "categories": [],
          "manualDiscounts": []
        }
      ],
      "externalActionMessage": [],
      "paymentMethod": "CASH_ON_DELIVERY",
      "paymentStatus": "PENDING",
      "paidAmount": {
        "amount": 0,
        "currencyCode": "EGP"
      },
      "shippingStatus": "PENDING",
      "taxSnapshot": null,
      "receipt": {
        "subtotal": {
          "amount": 3000,
          "currencyCode": "EGP"
        },
        "discount": {
          "amount": 0,
          "currencyCode": "EGP"
        },
        "tax": {
          "amount": 0,
          "currencyCode": "EGP"
        },
        "shipping": {
          "amount": 200,
          "currencyCode": "EGP"
        },
        "total": {
          "amount": 3200,
          "currencyCode": "EGP"
        },
        "automaticDiscount": {
          "amount": 0,
          "currencyCode": "EGP"
        }
      },
      "discounts": [],
      "locale": "en",
      "refCode": null,
      "paymentIntentId": "cmdlpac07000d016o65sn713a",
      "wuiltShipmentProvider": "Bosta",
      "packagingDetails": {
        "extraWeight": 0,
        "extraVolumetricWeight": 0,
        "weight": 0,
        "volumetricWeight": 0.0003333333333333333,
        "shippingCostDetails": {
          "baseCost": 75,
          "returnCost": 88,
          "baseWeightLimit": 20,
          "extraWeightCost": 0,
          "extraWeightStep": 0,
          "returnToOriginCost": 68
        },
        "flyer": "X_LARGE"
      },
      "tags": [],
      "openPackageOption": null,
      "manualDiscounts": [],
      "orderSerial": "418",
      "createdAt": "2025-07-27T13:14:03.056Z",
      "updatedAt": "2025-07-27T13:14:03.056Z"
    }
  },
  "metadata": {
    "apiVersion": "2024-01",
    "timestamp": "2024-01-17T09:15:00Z",
    "storeId": "store_abc123def456"
  }
}

Product Events

PRODUCT_CREATED

Triggered when a new product is added to the store.

Note: Bulk import will not trigger this event.

Payload Type: ProductInfo

View PRODUCT_CREATED payload example

{
  "event": "PRODUCT_CREATED",
  "payload": {
    "product": {
      "_id": "cmdzpoejh1mee01m2fctjd4dj",
      "type": "SIMPLE",
      "storeId": "cmdnsqc2a067k01kif865gtcy",
      "title": "Product Title",
      "descriptionHtml": "<p>Product Description</p>",
      "options": [],
      "media": [],
      "handle": "product-handle",
      "isArchived": false,
      "isVisible": true,
      "isDeleted": false,
      "seo": {
        "title": "Product Title",
        "description": "Product Description"
      },
      "locale": "en",
      "shortDescription": "Product Description",
      "collectionIds": [
        "cmdritvm3148r01m282gg74ek",
        "cmdr85b06160e01r5d8t24qwn"
      ],
      "status": "ACTIVE",
      "source": "MANUAL",
      "attributes": [
        {
          "attributeId": "cmdo7jnx30z4z01m2bk5ddue6",
          "valuesIds": ["cmdo7k1sg0z5001m2cu3ffo1k"],
          "_id": "689313698435803e6b6f98d5"
        },
        {
          "attributeId": "cmdo7la6h17gc01q7d66shgu8",
          "valuesIds": ["cmdzpcttz1j5m01r5eqp11qdh"],
          "_id": "689313698435803e6b6f98d6"
        },
        {
          "attributeId": "cmdtyrxtz1fy501q76v7m8gic",
          "valuesIds": ["cmdzpdfcn1me601m252059th1"],
          "_id": "689313698435803e6b6f98d7"
        },
        {
          "attributeId": "cmdtxb62800i301no82jg9mj2",
          "valuesIds": [
            "cmdy81c601gr801r5fq3b4oh6",
            "cmdzpefr71me701m26jyq74ra"
          ],
          "_id": "689313698435803e6b6f98d8"
        }
      ],
      "productVariants": [],
      "productTax": null,
      "taxable": false,
      "createdAt": "2025-08-06T08:33:45.641Z",
      "updatedAt": "2025-08-06T08:33:45.641Z",
      "variants": [
        {
          "_id": "cmdzpoek01mef01m28ohd7kzk",
          "type": "variant",
          "productId": "cmdzpoejh1mee01m2fctjd4dj",
          "storeId": "cmdn0qc2a067k01kif865gtcy",
          "sku": "",
          "trackQuantity": true,
          "quantity": 0,
          "price": {
            "amount": 220,
            "currencyCode": "EGP"
          },
          "compareAtPrice": {
            "amount": 250,
            "currencyCode": "EGP"
          },
          "selectedOptionsIds": [],
          "selectedOptionValuesIds": [],
          "isDeleted": false,
          "cost": null,
          "externalId": "",
          "cartLimitsEnabled": false,
          "minPerCart": 1,
          "maxPerCart": 100,
          "packageDetails": {
            "weight": null,
            "dimensions": {
              "length": null,
              "width": null,
              "height": null
            }
          },
          "reservations": [],
          "createdAt": "2025-08-06T08:33:45.651Z",
          "updatedAt": "2025-08-06T08:33:45.651Z"
        }
      ],
      "isTaxable": false
    }
  },
  "metadata": {
    "apiVersion": "2024-01",
    "timestamp": "2024-01-15T08:00:00Z",
    "storeId": "store_abc123def456"
  }
}

PRODUCT_UPDATED

Triggered when product details are modified.

Payload Type: ProductInfo

View PRODUCT_UPDATED payload example

{
  "event": "PRODUCT_UPDATED",
  "payload": {
    "product": {
      "_id": "cmdzpoejh1mee01m2fctjd4dj",
      "type": "SIMPLE",
      "storeId": "cmdn0qc2s067k01kif865gtcy",
      "title": "Product Title",
      "descriptionHtml": "<p>Product Description</p>",
      "options": [],
      "media": [],
      "handle": "product-handle",
      "isArchived": false,
      "isVisible": true,
      "isDeleted": false,
      "seo": {
        "title": "Product Title",
        "description": "Product Description"
      },
      "locale": "en",
      "shortDescription": "Product Description",
      "collectionIds": [
        "cmdritvm3148r01m282gg74ek",
        "cmdr85b06160e01r5d8t24qwn"
      ],
      "status": "ACTIVE",
      "source": "MANUAL",
      "attributes": [
        {
          "attributeId": "cmdo7jnx30z4z01m2bk5ddue6",
          "valuesIds": ["cmdo7k1sg0z5001m2cu3ffo1k"],
          "_id": "689313698435803e6b6f98d5"
        },
        {
          "attributeId": "cmdo7la6h17gc01q7d66shgu8",
          "valuesIds": ["cmdzpcttz1j5m01r5eqp11qdh"],
          "_id": "689313698435803e6b6f98d6"
        },
        {
          "attributeId": "cmdtyrxtz1fy501q76v7m8gic",
          "valuesIds": ["cmdzpdfcn1me601m252059th1"],
          "_id": "689313698435803e6b6f98d7"
        },
        {
          "attributeId": "cmdtxb62800i301no82jg9mj2",
          "valuesIds": [
            "cmdy81c601gr801r5fq3b4oh6",
            "cmdzpefr71me701m26jyq74ra"
          ],
          "_id": "689313698435803e6b6f98d8"
        }
      ],
      "productVariants": [],
      "productTax": null,
      "taxable": false,
      "createdAt": "2025-08-06T08:33:45.641Z",
      "updatedAt": "2025-08-06T08:33:45.641Z",
      "variants": [
        {
          "_id": "cmdzpoek01mef01m28ohd7kzk",
          "type": "variant",
          "productId": "cmdzpoejh1mee01m2fctjd4dj",
          "storeId": "cmdn0qc2a067k01kif865gtcy",
          "sku": "",
          "trackQuantity": true,
          "quantity": 0,
          "price": {
            "amount": 220,
            "currencyCode": "EGP"
          },
          "compareAtPrice": {
            "amount": 250,
            "currencyCode": "EGP"
          },
          "selectedOptionsIds": [],
          "selectedOptionValuesIds": [],
          "isDeleted": false,
          "cost": null,
          "externalId": "",
          "cartLimitsEnabled": false,
          "minPerCart": 1,
          "maxPerCart": 100,
          "packageDetails": {
            "weight": null,
            "dimensions": {
              "length": null,
              "width": null,
              "height": null
            }
          },
          "reservations": [],
          "createdAt": "2025-08-06T08:33:45.651Z",
          "updatedAt": "2025-08-06T08:33:45.651Z"
        }
      ],
      "isTaxable": false
    }
  },
  "metadata": {
    "apiVersion": "2024-01",
    "timestamp": "2024-01-16T11:30:00Z",
    "storeId": "store_abc123def456"
  }
}

PRODUCT_DELETED

Triggered when a product is deleted from the store.

Payload Type: EntityDeletedEventPayload

View PRODUCT_DELETED payload example

{
  "event": "PRODUCT_DELETED",
  "payload": {
    "id": "689313698435803e6b6f98d8",
    "deletedAt": "2024-01-17T16:45:00Z"
  },
  "metadata": {
    "apiVersion": "2024-01",
    "timestamp": "2024-01-17T16:45:00Z",
    "storeId": "store_abc123def456"
  }
}

SHIPMENT_UPDATED

Triggered when a shipment status changes during the fulfillment process. This includes events like pickup, delivery attempts, successful delivery, and returns.

Payload Type: { events: string[], order: OrderStatusEvent }

Possible Event Types:

OrderShipmentPickedUp - Package has been picked up by carrier
OrderShipmentIsOnTheWay - Package is in transit
OrderShipmentDelivered - Package successfully delivered
OrderShipmentReturnedToSeller - Package returned to seller
OrderShipmentActionRequired - Action required for shipment processing

View SHIPMENT_UPDATED payload example

{
  "event": "SHIPMENT_UPDATED",
  "payload": {
    "events": ["OrderShipmentDelivered"],
    "order": {
      "orderId": "cmdlpac7n000201pm3dgifkqu",
      "airwayBillId": "AWB123456789",
      "companyName": "Bosta",
      "cost": 75,
      "location": {
        "country": "Egypt",
        "governorate": "Alexandria",
        "city": "Borg Al Arab City",
        "fullAddress": "11th Districtttt, 12th apartment, Borg Al Arab City, Alexandria, Egypt"
      },
      "storeId": "cm4qwjv0e004s01k77o2f1f5e",
      "trackingNumber": "TRACK123456",
      "orderSerial": 418
    }
  },
  "metadata": {
    "apiVersion": "2024-01",
    "timestamp": "2024-01-20T14:30:00Z",
    "storeId": "store_abc123def456"
  }
}

Customer Events

CUSTOMER_CREATED

Triggered when a new customer account is created.

Payload Type: { customer: CustomerDocument }

View CUSTOMER_CREATED payload example

{
  "event": "CUSTOMER_CREATED",
  "payload": {
    "customer": {
      "_id": "cmdyk6iy44alh017007yhblv4",
      "name": "John Doe",
      "email": "john.doe@gmail.com",
      "phone": "+201111111111",
      "storeId": "clvbieoia04o601j8886abo1h",
      "isGuest": true,
      "preferredLocale": "en",
      "addresses": [
        {
          "_id": "cmdyk6iy44alg01705vlvef5y",
          "area": {
            "stateId": "cl0pf3jxs02jtlwm1hs2u6g0z",
            "countryId": "cl0pf3jxc00m1lwm1hw3u66ri"
          },
          "notes": "test note",
          "secondPhone": "+201111111111",
          "addressLine1": "123 Main St",
          "addressLine2": "Apt 4B",
          "isDefault": true
        }
      ]
    }
  },
  "metadata": {
    "apiVersion": "2024-01",
    "timestamp": "2024-01-15T12:00:00Z",
    "storeId": "cmdyk6iy44alh017007yhblv4"
  }
}

CUSTOMER_UPDATED

Triggered when customer information is modified.

Payload Type: { customer: CustomerDocument }

View CUSTOMER_UPDATED payload example

{
  "event": "CUSTOMER_UPDATED",
  "payload": {
    "customer": {
      "_id": "cmdyk6iy44alh017007yhblv4",
      "name": "John Doe",
      "email": "john.doe@gmail.com",
      "phone": "+201111111111",
      "storeId": "clvbieoia04o601j8886abo1h",
      "isGuest": true,
      "preferredLocale": "en",
      "addresses": [
        {
          "_id": "cmdyk6iy44alg01705vlvef5y",
          "area": {
            "stateId": "cl0pf3jxs02jtlwm1hs2u6g0z",
            "countryId": "cl0pf3jxc00m1lwm1hw3u66ri"
          },
          "notes": "test note",
          "secondPhone": "+201111111111",
          "addressLine1": "123 Main St",
          "addressLine2": "Apt 4B",
          "isDefault": true
        }
      ]
    }
  },
  "metadata": {
    "apiVersion": "2024-01",
    "timestamp": "2024-01-20T09:30:00Z",
    "storeId": "store_abc123def456"
  }
}

Cart & Checkout Events

CART_ITEM_ADDED

Triggered when a customer adds a simple or custom product item to their cart.

Payload Type: { storeId: string, item: CartItem }

Field	Description
`storeId`	The store where the item was added
`item.id`	Unique item ID
`item.quantity`	Quantity added
`item.productId`	Product identifier
`item.variantId`	Variant identifier
`item.price`	Price object with `amount` and `currencyCode`

Delivery: Real-time. Fires on every add-to-cart action (simple and custom items). If a customer adds the same product again (increasing quantity), a new event is fired.

Use cases:

Real-time inventory monitoring for popular items
Trigger upsell/cross-sell logic in external recommendation engines
Track add-to-cart events in external analytics platforms

View CART_ITEM_ADDED payload example

{
  "event": "CART_ITEM_ADDED",
  "payload": {
    "storeId": "store-uuid",
    "item": {
      "id": "item-uuid",
      "quantity": 1,
      "productId": "product-uuid",
      "variantId": "variant-uuid",
      "price": {
        "amount": 150,
        "currencyCode": "EGP"
      }
    }
  },
  "metaData": {
    "webhookId": "webhook-uuid",
    "storeId": "store-uuid",
    "timestamp": "2026-06-13T14:02:00.000Z",
    "apiVersion": "V1"
  }
}

CHECKOUT_INITIATED

Triggered when a customer navigates to the checkout page.

Payload Type: { storeId: string, cart: CartDocument }

Field	Description
`storeId`	The store where checkout was initiated
`cart.id`	Cart identifier
`cart.status`	Cart status (ACTIVE)
`cart.cartSimpleItems`	Array of simple product items in the cart
`cart.cartCustomItems`	Array of custom product items in the cart
`cart.contactInfo`	Customer contact information (email, name, phone)
`cart.store`	Store information
`cart.receipt`	Cart totals (subtotal, total, shipping)

Delivery: Real-time. Fires once when the customer navigates to checkout.

Use cases:

Track checkout funnel conversion in external analytics
Trigger real-time support chat for high-value carts
Sync checkout intent with CRM tools

View CHECKOUT_INITIATED payload example

{
  "event": "CHECKOUT_INITIATED",
  "payload": {
    "storeId": "store-uuid",
    "cart": {
      "id": "uuid",
      "status": "ACTIVE",
      "cartSimpleItems": [
        {
          "id": "uuid",
          "quantity": 2,
          "productId": "uuid",
          "variantId": "uuid",
          "price": { "amount": 150, "currencyCode": "EGP" }
        }
      ],
      "cartCustomItems": [],
      "contactInfo": {
        "email": "customer@example.com",
        "firstName": "Sara",
        "lastName": "Ali"
      },
      "store": {
        "id": "store-uuid",
        "name": "My Store",
        "currencyCode": "EGP"
      },
      "receipt": {
        "subtotal": { "amount": 300, "currencyCode": "EGP" },
        "total": { "amount": 350, "currencyCode": "EGP" }
      },
      "createdAt": "2026-06-13T14:00:00.000Z",
      "updatedAt": "2026-06-13T14:05:00.000Z"
    }
  },
  "metaData": {
    "webhookId": "webhook-uuid",
    "storeId": "store-uuid",
    "timestamp": "2026-06-13T14:05:01.000Z",
    "apiVersion": "V1"
  }
}

CART_ABANDONED

Triggered when a cart with contact information has been inactive for more than 60 minutes.

Payload Type: { cart: CartDocument, storeId: string, abandonedAt: string }

Field	Description
`cart.id`	Cart identifier
`cart.status`	Cart status (ABANDONED)
`cart.cartSimpleItems`	Array of simple product items in the cart
`cart.cartCustomItems`	Array of custom product items in the cart
`cart.contactInfo`	Customer contact information (email, name, phone)
`cart.store`	Store information
`cart.receipt`	Cart totals (subtotal, total, shipping)
`storeId`	The store the cart belongs to
`abandonedAt`	ISO timestamp of when the cart was marked abandoned

Delivery: Scheduled (cron). Checked every few minutes; fires after 60 minutes of inactivity. The cart must have contact info (email or phone) — anonymous carts are never marked as abandoned.

Use cases:

Send recovery emails to customers who abandoned carts
Trigger retargeting ads or SMS reminders
Track abandonment rates in external analytics tools

View CART_ABANDONED payload example

{
  "event": "CART_ABANDONED",
  "payload": {
    "cart": {
      "id": "uuid",
      "status": "ABANDONED",
      "cartSimpleItems": [
        {
          "id": "uuid",
          "quantity": 1,
          "productId": "uuid",
          "variantId": "uuid",
          "price": { "amount": 200, "currencyCode": "EGP" }
        }
      ],
      "cartCustomItems": [],
      "contactInfo": {
        "email": "customer@example.com",
        "firstName": "Ahmed",
        "lastName": "Mohamed",
        "phone": "+201234567890"
      },
      "store": {
        "id": "store-uuid",
        "name": "My Store",
        "currencyCode": "EGP"
      },
      "receipt": {
        "subtotal": { "amount": 200, "currencyCode": "EGP" },
        "total": { "amount": 250, "currencyCode": "EGP" },
        "shippingCost": { "amount": 50, "currencyCode": "EGP" }
      },
      "createdAt": "2026-06-10T10:00:00.000Z",
      "updatedAt": "2026-06-10T10:30:00.000Z"
    },
    "storeId": "store-uuid",
    "abandonedAt": "2026-06-10T11:30:00.000Z"
  },
  "metaData": {
    "webhookId": "webhook-uuid",
    "storeId": "store-uuid",
    "timestamp": "2026-06-10T11:30:05.000Z",
    "apiVersion": "V1"
  }
}

Event Timing & Behavior

Event	Delivery	Notes
`CART_ITEM_ADDED`	Real-time	Fires on every add-to-cart action (simple and custom items)
`CHECKOUT_INITIATED`	Real-time	Fires once when customer navigates to checkout
`CART_ABANDONED`	Scheduled (cron)	Checked every few minutes; fires after 60 min of inactivity. Cart must have contact info (email/phone).

Important: CART_ABANDONED does not fire in real-time. It runs on a periodic schedule and marks all qualifying carts as abandoned in batch. The abandonedAt timestamp indicates when the batch ran. A cart is eligible for abandonment only if it has contactInfo (email or phone). Anonymous carts without contact info are never marked as abandoned.

Best Practices

1. Handle Webhooks Idempotently

Wuilt may send the same webhook multiple times. Always handle webhooks idempotently:

const processedWebhooks = new Set();

app.post("/webhooks/wuilt", (req, res) => {
  const { event, payload, metadata } = req.body;
  const webhookId = `${event}-${payload.id}-${metadata.timestamp}`;

  // Check if we've already processed this webhook
  if (processedWebhooks.has(webhookId)) {
    console.log("Webhook already processed:", webhookId);
    return res.status(200).send("OK");
  }

  // Process the webhook
  processWebhook(event, payload, metadata);

  // Mark as processed
  processedWebhooks.add(webhookId);

  res.status(200).send("OK");
});

2. Respond Quickly

Respond to webhooks within 10 seconds to avoid timeouts:

app.post("/webhooks/wuilt", (req, res) => {
  // Respond immediately
  res.status(200).send("OK");

  // Process webhook asynchronously
  setImmediate(() => {
    processWebhookAsync(req.body);
  });
});

3. Implement Retry Logic

Handle webhook failures gracefully with exponential backoff:

async function processWebhookWithRetry(webhookData, maxRetries = 3) {
  for (let attempt = 1; attempt <= maxRetries; attempt++) {
    try {
      await processWebhook(webhookData);
      return; // Success
    } catch (error) {
      console.error(`Webhook processing failed (attempt ${attempt}):`, error);

      if (attempt === maxRetries) {
        // Log to dead letter queue or alert system
        console.error("Max retries exceeded for webhook:", webhookData);
        return;
      }

      // Exponential backoff
      const delay = Math.pow(2, attempt) * 1000;
      await new Promise((resolve) => setTimeout(resolve, delay));
    }
  }
}

4. Log Webhook Events

Keep detailed logs for debugging and monitoring:

app.post("/webhooks/wuilt", (req, res) => {
  const { event, payload, metadata } = req.body;

  console.log("Webhook received:", {
    event,
    resourceId: payload.id,
    storeId: metadata.storeId,
    timestamp: metadata.timestamp,
    apiVersion: metadata.apiVersion,
  });

  try {
    processWebhook(event, payload, metadata);
    console.log("Webhook processed successfully:", event, payload.id);
  } catch (error) {
    console.error("Webhook processing failed:", {
      event,
      resourceId: payload.id,
      error: error.message,
      stack: error.stack,
    });
  }

  res.status(200).send("OK");
});

Testing Webhooks

Option 1: Use Webhook.site (Quick Testing - No Setup Required)

For quick testing without setting up a server, use Webhook.site:

Visit webhook.site - You'll get a unique URL instantly
Copy your unique URL (e.g., https://webhook.site/#!/abc123-def456-...)
Register the URL in Wuilt Dashboard - Use the unique URL as your webhook endpoint
Trigger events in your Wuilt store - Place an order, update a product, etc.
View webhook payloads in real-time - All incoming webhooks appear instantly on webhook.site

Benefits:

✅ No installation or setup required
✅ Instant webhook URL generation
✅ Real-time payload inspection
✅ Request history and replay
✅ Custom response configuration
✅ Works from anywhere (no local server needed)

Perfect for:

Quick webhook testing and debugging
Inspecting webhook payload structure
Verifying webhook delivery
Testing without writing code

Option 2: Use ngrok for Local Development

For testing with your own webhook handler code, expose your local endpoint:

# Install ngrok
npm install -g ngrok

# Expose your local server
ngrok http 3000

# Use the generated URL for webhook registration
# https://abc123.ngrok.io/webhooks/wuilt

Benefits:

✅ Test with your actual webhook handler code
✅ Debug your application logic
✅ Develop and test simultaneously

3. Test with Sample Payloads

Create test functions to simulate webhook events:

// Test webhook handler with sample data
function testOrderPlacedWebhook() {
  const samplePayload = {
    event: "ORDER_PLACED",
    payload: {
      id: "test_order_123",
      orderNumber: "TEST-001",
      status: "pending",
      // ... other order fields
    },
    metadata: {
      apiVersion: "2024-01",
      timestamp: new Date().toISOString(),
      storeId: "test_store_123",
    },
  };

  // Simulate webhook call
  handleWebhook(samplePayload);
}

Troubleshooting

Common Issues

Webhook not receiving events: Check that your endpoint is publicly accessible and returns 200 OK
Duplicate events: Implement idempotency checks using event ID and timestamp
Timeout errors: Ensure your webhook responds within 10 seconds

Webhook Logs

Monitor your webhook delivery status in the Wuilt dashboard to identify and resolve issues quickly.

For more information about the Wuilt Commerce API, visit our API Documentation.

How to Set Up Webhooks​

1. Create a Webhook Endpoint​

2. Access the Dev tools Section​

3. Notifications Webhooks​

4. Register Your Webhook in the Wuilt Dashboard​

Event Payloads​

Order Events​

ORDER_PLACED​

ORDER_UPDATED​

ORDER_CANCELED​

Product Events​

PRODUCT_CREATED​

PRODUCT_UPDATED​

PRODUCT_DELETED​

SHIPMENT_UPDATED​

Customer Events​

CUSTOMER_CREATED​

CUSTOMER_UPDATED​

Cart & Checkout Events​

CART_ITEM_ADDED​

CHECKOUT_INITIATED​

CART_ABANDONED​

Best Practices​

1. Handle Webhooks Idempotently​

2. Respond Quickly​

3. Implement Retry Logic​

4. Log Webhook Events​

Testing Webhooks​

Option 1: Use Webhook.site (Quick Testing - No Setup Required)​

Option 2: Use ngrok for Local Development​

3. Test with Sample Payloads​

Troubleshooting​

Common Issues​

Webhook Logs​

How to Set Up Webhooks

1. Create a Webhook Endpoint

2. Access the Dev tools Section

3. Notifications Webhooks

4. Register Your Webhook in the Wuilt Dashboard

Event Payloads

Order Events

ORDER_PLACED

ORDER_UPDATED

ORDER_CANCELED

Product Events

PRODUCT_CREATED

PRODUCT_UPDATED

PRODUCT_DELETED

SHIPMENT_UPDATED

Customer Events

CUSTOMER_CREATED

CUSTOMER_UPDATED

Cart & Checkout Events

CART_ITEM_ADDED

CHECKOUT_INITIATED

CART_ABANDONED

Best Practices

1. Handle Webhooks Idempotently

2. Respond Quickly

3. Implement Retry Logic

4. Log Webhook Events

Testing Webhooks

Option 1: Use Webhook.site (Quick Testing - No Setup Required)

Option 2: Use ngrok for Local Development

3. Test with Sample Payloads

Troubleshooting

Common Issues

Webhook Logs
